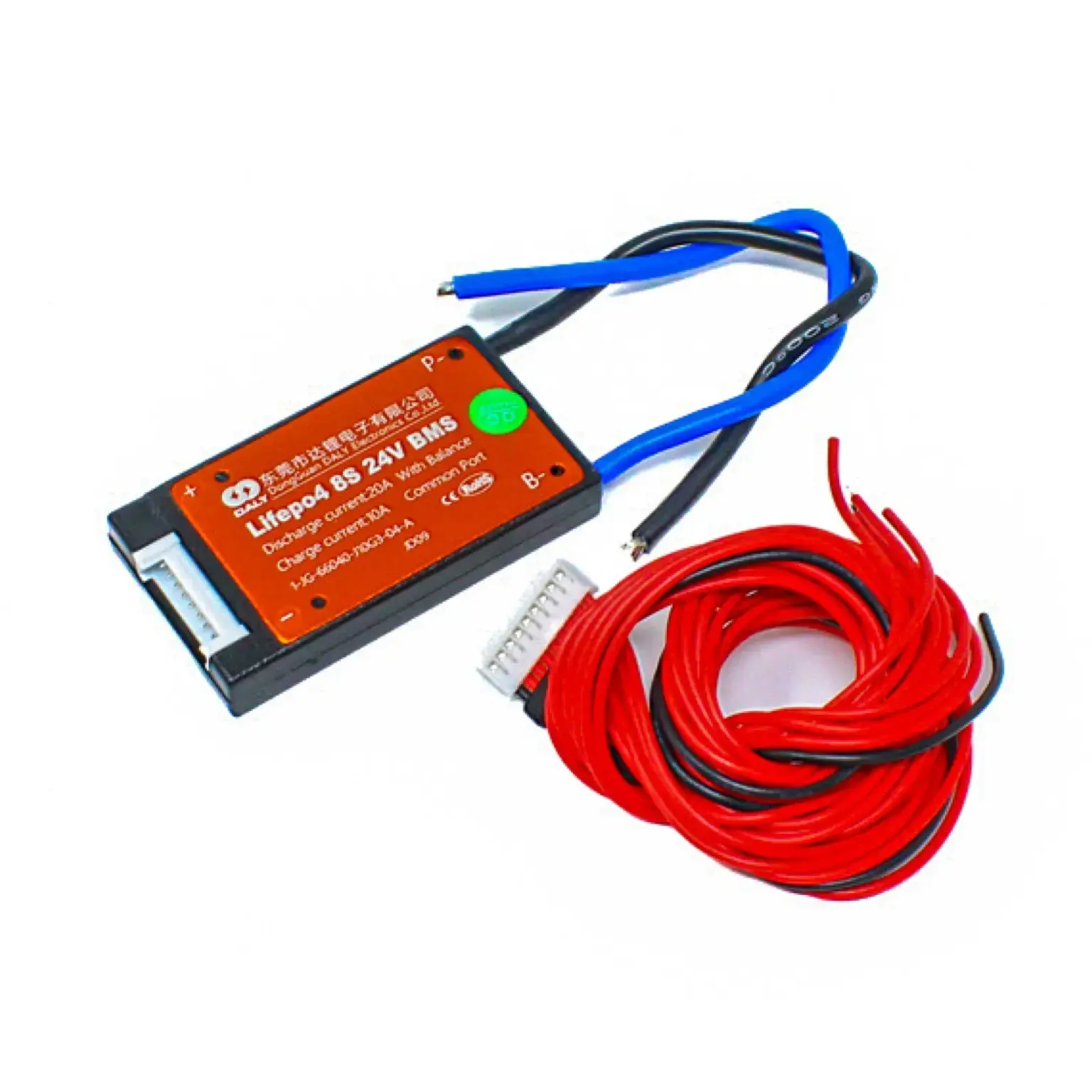

DALY LiFePo4 8S 24V 20A Battery Management System - BMS Protection Board

Specification

Balance Current(mA) : 30±5

Balance Detect Voltage(V) :3.5

Cable Size (AWG) :14

Charge Current(A) :20

Charge Voltage(V) :28.8

Height (mm) : 8.8

Length (mm) :60

Model : 8S 24V 20A

Over Discharge Detect(V) : 2.2±0.05

Over Discharge Release(V) : Off load

Overcharge Detect Voltage(V) :3.75±0.05

Overcharge Release Voltage(V) :3.55±0.05

Weight (gm) :39

Width (mm) :34

Working Current(uA) :100

Working Temperature Range (°C) : -20 to 70
